How Titan Works

🔍 The Big Picture

Titan transforms your JavaScript/TypeScript code into a high-performance native Rust server. Here's how it all works together.

🏗️ Build-Time: From Code to Binary

1. Action Discovery

Titan scans your app/ directory for action files:

app/
├── actions/
│   ├── user.js          → /actions/user
│   └── auth/
│       └── login.js     → /actions/auth/login

2. Bundling with esbuild

Each action is bundled independently:

• Tree-shaking: Only used code is included
• Dependency resolution: All imports are inlined
• Type stripping: TypeScript types are removed
• ES6 module output: Clean, modern JavaScript

// Before bundling (user.js)
import { validateEmail } from '../../utils/validation';
export const getUser = defineAction((req) => { ... });

// After bundling (optimized, dependencies inlined)
const validateEmail = (email) => { ... };
export const getUser = defineAction((req) => { ... });

3. Rust Code Generation

Titan generates Rust code that:

• Registers each action's route
• Maps HTTP paths to action functions
• Creates the routing table

// Generated Rust (simplified)
pub fn register_actions(router: Router) -> Router {
    router
        .route("/actions/user", post(execute_user_action))
        .route("/actions/auth/login", post(execute_login_action))
}

4. Compilation

The Rust server is compiled into a native binary:

cargo build --release
   Compiling titan-server v26.12.1
   Finished release [optimized] target(s) in 12.3s

Result: A single binary executable with Gravity (embedded V8 runtime) and all actions.

⚡ Gravity Runtime: Request to Response

Phase 1: HTTP Server (Rust Axum)

When a request arrives at http://localhost:3000/actions/user:

1. Axum receives the HTTP request (highly efficient Rust async I/O)
2. Router matches the path to /actions/user
3. Request is dispatched to an available worker

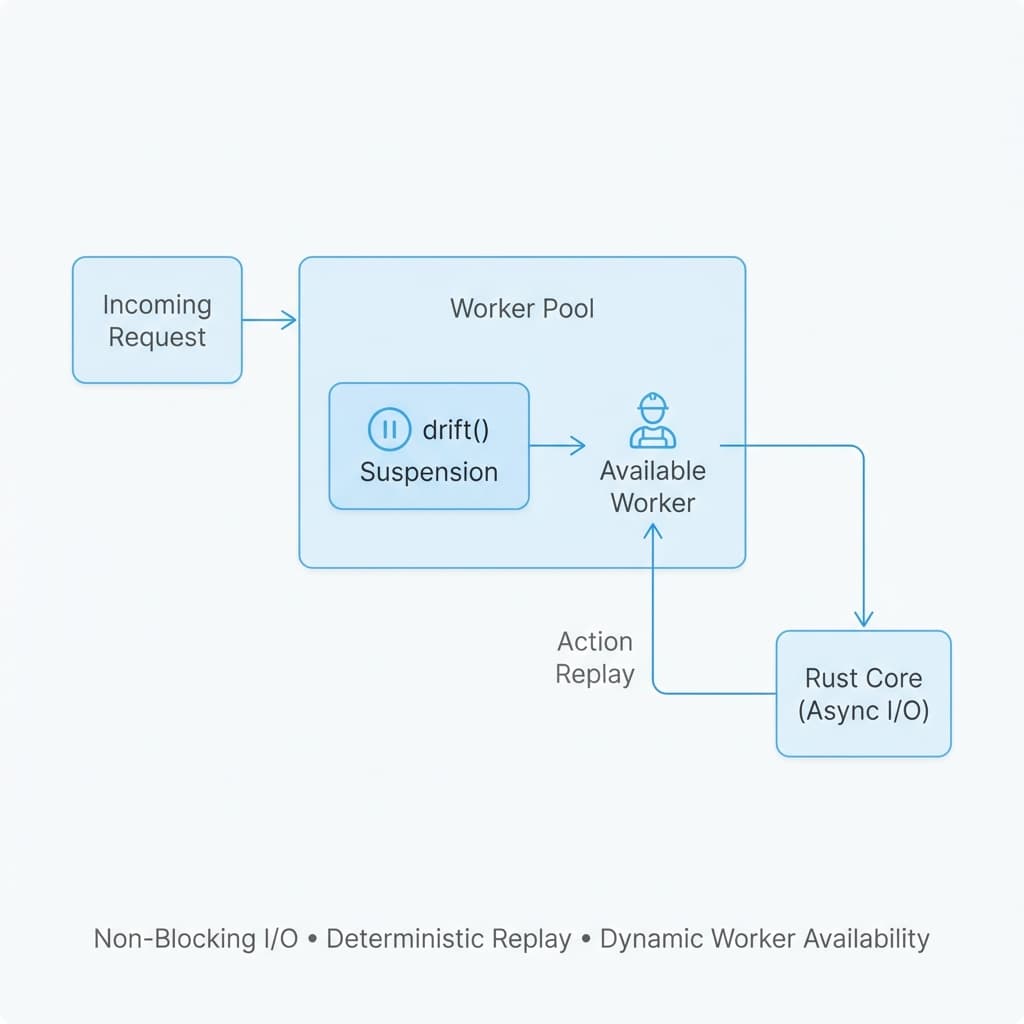

Phase 2: Worker Execution (Gravity Runtime)

Each worker:

1. Receives the request (headers, body, query params)
2. Enters V8 isolate (managed by multi-threaded Gravity)
3. Calls the action function
4. Executes synchronously — If drift() is encounterd, the worker is freed during the I/O wait.
5. Returns the response back to Axum

// Your action code
export const getUser = defineAction((req) => {
  // This runs inside a V8 isolate
  const userId = req.query.id;

  // Non-blocking call to database via Drift
  const user = drift(t.db.query(`SELECT * FROM users WHERE id = ?`, [userId]));

  return {
    status: 200,
    body: { user }
  };
});

From JavaScript's perspective:

• Everything is synchronous-looking (via Drift)
• No async/await, no callbacks, no promises
• Linear execution, top to bottom

Key Architectural Principles:

• Async Rust Core: The Axum server is fully asynchronous for maximum network I/O efficiency.
• Synchronous Workers: Each worker executes JavaScript synchronously to ensure predictability.
• Worker Guard: Native blocking calls (without drift()) are disallowed and will trigger a runtime error to preserve concurrency.
• Worker Availability: Once an action completes or a drift() suspends it, the worker returns to the pool for the next request.

Phase 3: Response

The result flows back:

JavaScript Result → Rust Handler → Axum Router → HTTP Response

🧵 Worker Pool Architecture

Initialization (Server Start)

When the server starts:

1. Worker pool is created (e.g., 8 workers on an 8-core machine)
2. Each worker initializes:
   • Creates a V8 isolate
   • Loads and compiles all action bundles
   • Registers Gravity runtime APIs (t.fetch, t.db, etc.)
3. Workers enter idle state, waiting for requests

Request Distribution

                    ┌─────────────────┐
Incoming Requests → │ Rust Dispatcher │
                    └────────┬────────┘
                             │
              ┌──────────────┼──────────────┐
              ▼              ▼              ▼
         ┌─────────┐   ┌─────────┐   ┌─────────┐
         │Worker 1 │   │Worker 2 │   │Worker N │
         │ [Busy]  │   │ [Idle]  │   │ [Idle]  │
         └─────────┘   └─────────┘   └─────────┘

Dispatcher Logic:

• Maintains a queue of available workers
• Assigns requests to idle workers
• If all workers are busy, request waits in queue

Zero Lock Contention:

• Workers never share state
• No global locks
• No mutex contention

🔄 Development Mode

In development (titan dev), Titan adds:

Hot Reload

1. File watcher monitors app/ directory
2. On change detected:
   • Re-bundle affected actions
   • Reload action code in all workers
   • No server restart needed

Error Reporting

Titan captures:

• Syntax errors (esbuild compilation)
• Runtime errors (JavaScript exceptions)
• Stack traces (with source maps)

Displayed in a beautiful Next.js-style error overlay.

🎯 Cold Start Characteristics

TitanPL Cold Start: ~3-5ms

Why so fast?

1. No disk I/O: Actions are pre-loaded in memory
2. No module resolution: Everything is bundled
3. Pre-compiled bytecode: V8 compiles on startup, not per-request
4. Gravity embedded: No separate process spawning

Compare to:

• AWS Lambda (Node.js): 100-500ms cold start
• Traditional Node.js server: 50-200ms per worker spawn

📊 Data Flow Diagram

┌─────────────┐
│ Your Code   │
│ (app/)      │
└──────┬──────┘
       │
       ▼
┌─────────────┐
│  esbuild    │ ← Bundle each action
└──────┬──────┘
       │
       ▼
┌─────────────┐
│ Rust Codegen│ ← Generate routing table
└──────┬──────┘
       │
       ▼
┌─────────────┐
│cargo build  │ ← Compile to native binary
└──────┬──────┘
       │
       ▼
┌─────────────────────────────────┐
│   Native Binary (executable)    │
│                                  │
│  ┌────────────────────────────┐ │
│  │  Axum HTTP Server (async)  │ │
│  └───────────┬────────────────┘ │
│              │                   │
│  ┌───────────▼───────────────┐  │
│  │   Worker Pool (V8s)       │  │
│  │  ┌──────┐  ┌──────┐       │  │
│  │  │Worker│  │Worker│  ...  │  │
│  │  │  1   │  │  2   │       │  │
│  │  └──────┘  └──────┘       │  │
│  └───────────────────────────┘  │
└─────────────────────────────────┘
       │
       ▼
   HTTP Responses

🧠 Memory Model

Per-Worker Memory

Each worker owns:

• V8 Heap: ~40-80MB (configurable)
• Compiled Actions: Pre-compiled bytecode
• Gravity APIs: Native bindings to Rust

Workers are completely isolated:

• No shared heap
• No shared objects
• Garbage collection is per-worker

Total Memory Usage

For an 8-worker server:

Base Rust Server:     ~10-20 MB
Worker 1-8 (V8):      ~320-640 MB (8 × 40-80 MB)
Total:                ~330-660 MB

Trade-off:

• More memory usage than single-threaded Node.js
• But true parallelism and zero lock contention

🚀 Why This Architecture?

Design Goals

1. Performance: Native Rust + V8 = maximum speed
2. Simplicity: Synchronous code = easier debugging
3. Scalability: Multi-threading = linear scaling
4. Isolation: Per-worker isolates = crash safety
5. Developer Experience: Hot reload + great errors

Inspired By

• Chrome's process-per-tab: Isolation for stability
• Deno's multi-isolate approach: Secure, sandboxed execution
• Actix/Hyper (Rust): High-performance HTTP servers
• V8 Engine: Proven JavaScript performance

📚 Next Steps

• Gravity Runtime Architecture — Deep dive into synchronous execution
